$23.00 USD
Add an internal rumble motor in your GBA so you can play GB and GBA games that have rumble with our embedded rumble flex board. Adjust the rumble strength with the on board trimpot (highest setting by default, clockwise for less strength). Designed and made in Australia.
At power up, the motor rumbles for half a second and by default is switched off so it doesn’t get triggered by certain games, e.g Pokemon. You need to wire up pads 1 & 2 to any buttons of your choice and hold both down for 3 seconds to switch it on or off. Alternatively you can tie pads 1 & 2 to the V+ pad to always enable rumble.
Questions? Jump on our Discord server.
2 ready to build (5-10 days build time)
Installation

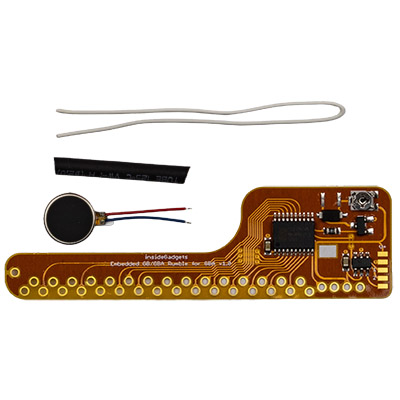

The motor doesn’t come soldered to the flex board as we recommend extending the cable so you can place the motor on the other side.

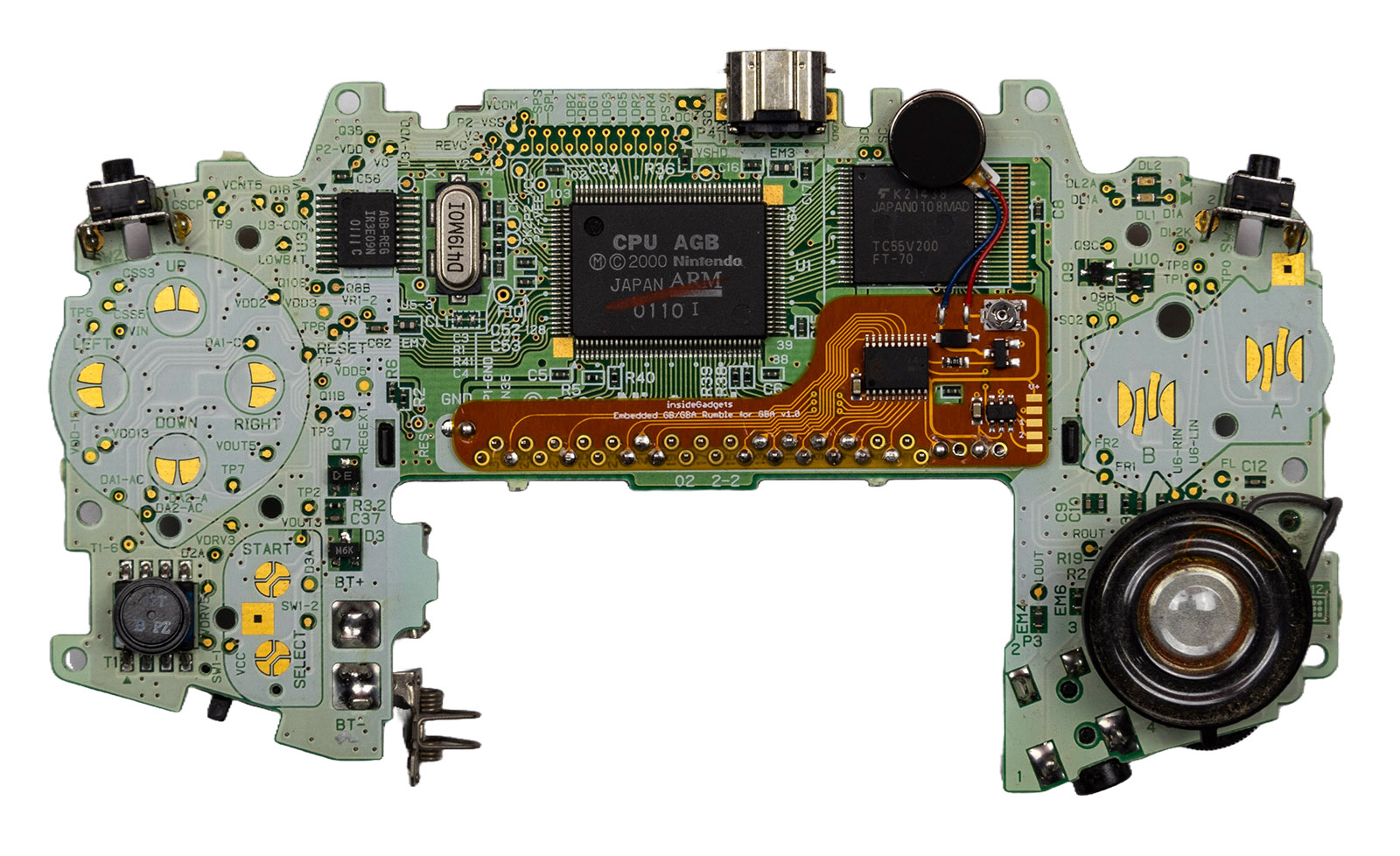

Align the flex board on the cart pins and solder those with traces plus the GND pad on the left.

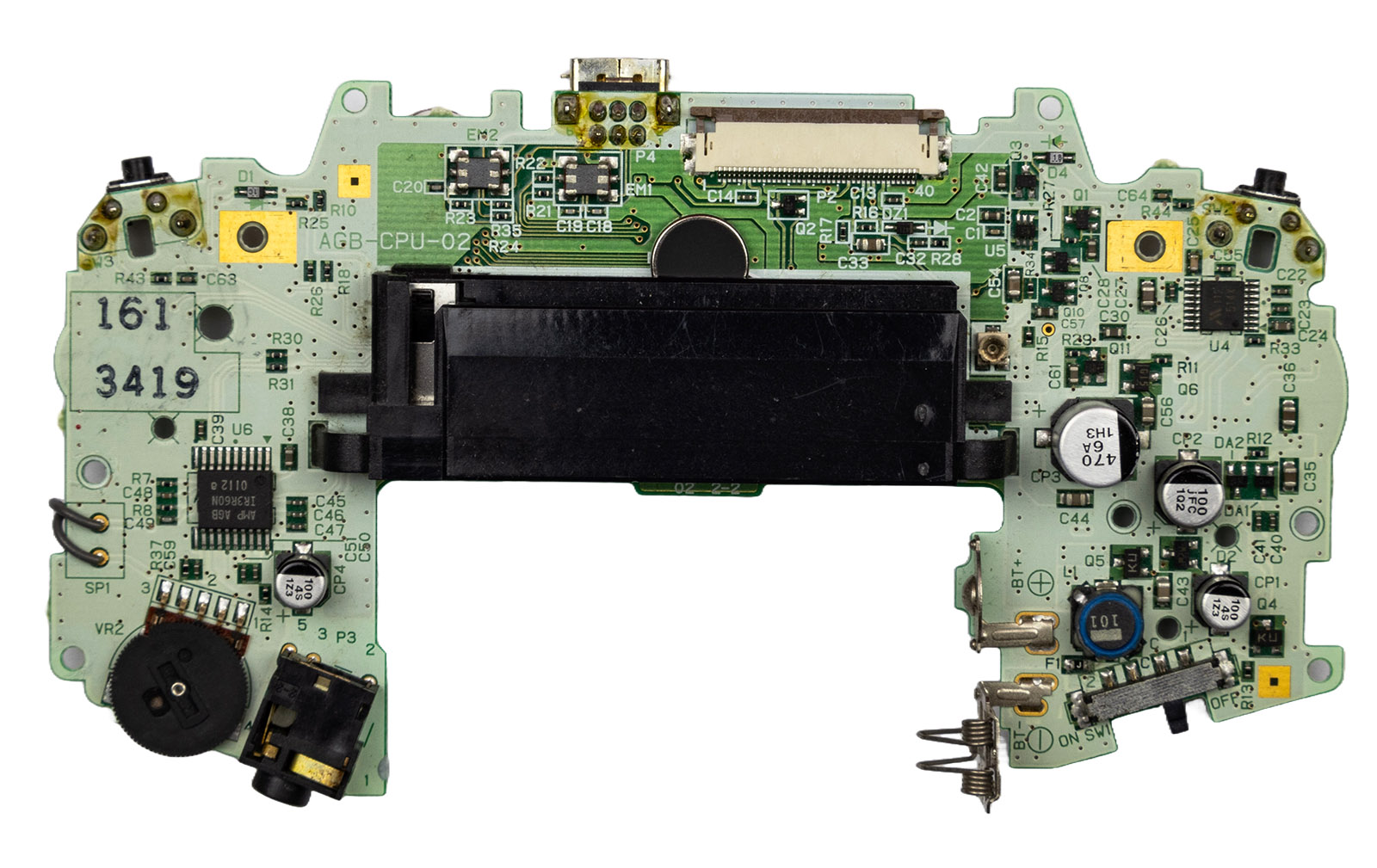

Recommended motor position
Adjust the rumble strength with the on board trimpot (counter-clockwise for more strength).
| Weight | 15 g |
|---|
